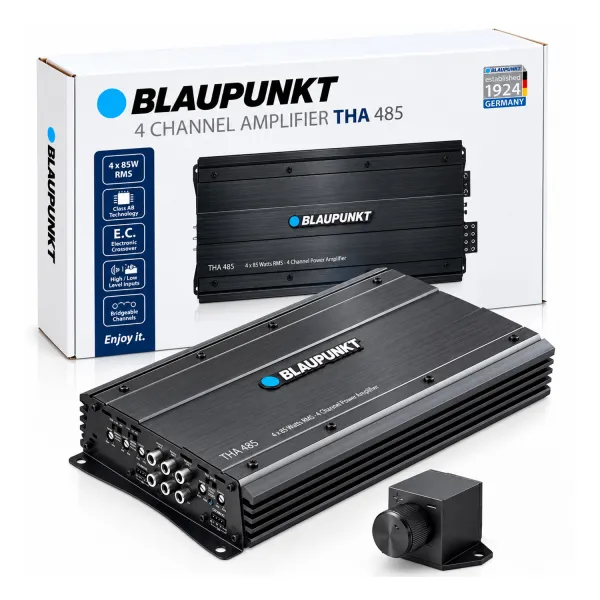

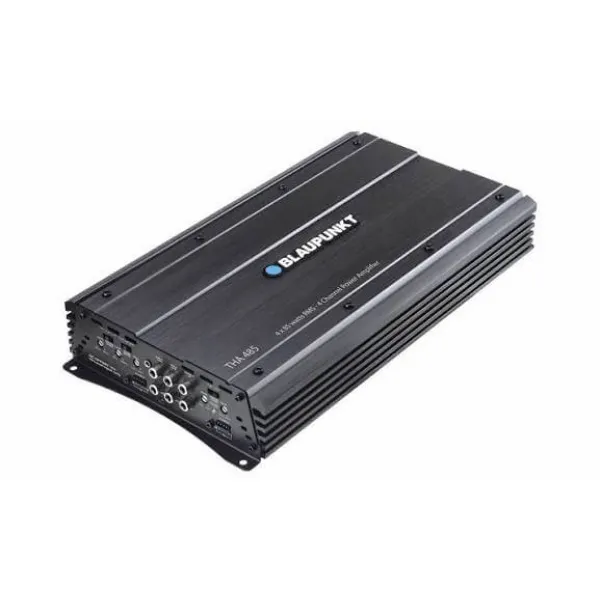

Blaupunkt THA 485 4 Channel Class A/B Car Amplifier 720W

Blaupunkt THA 485 4 Channel Class A/B Car Amplifier 720W

Blaupunkt THA 485 4 Channel Class A/B Car Amplifier 720W

Take your in-car music experience to the next level with the Blaupunkt THA 485 4 Channel Car Amplifier. Designed for car audio enthusiasts, this high-power Class A/B amplifier delivers strong RMS output, flexible channel configurations and convenient bass control for compatible car speaker and subwoofer systems.

With 4 x 85W RMS at 4 ohms and 4 x 120W RMS at 2 ohms, the Blaupunkt THA 485 offers dedicated amplification for compatible car speakers. Its bridged mode delivers 2 x 240W RMS at 4 ohms, providing additional configuration flexibility for suitable audio components. The amplifier also features high-level input, DC-offset auto turn-on, built-in crossovers and an external bass controller.

Key Features of Blaupunkt THA 485

• 720W Maximum Total Power: Designed for powerful output in compatible car audio installations.
• Class A/B Amplification: Combines high-power capability with detailed audio reproduction.
• 4-Channel Operation: Supports flexible 4-, 3- or 2-channel configurations.
• 4 x 85W RMS at 4 Ohms: Powers four compatible speakers with dedicated amplification.
• 4 x 120W RMS at 2 Ohms: Provides higher per-channel output with compatible 2-ohm loads.
• Bridged RMS Output: Delivers 2 x 240W RMS at 4 ohms for suitable bridged configurations.
• High-Level Input: Allows connection to compatible factory-fitted car stereos.
• DC-Offset Auto Turn-On: Helps activate the amplifier when used with compatible original-equipment head units.
• Built-In Crossovers: Supports frequency management for compatible speaker and subwoofer setups.
• External Bass Controller: Allows convenient adjustment of bass output from the installed controller.
• RCA Pass-Through: Provides signal routing for additional compatible audio equipment.
• 2-Ohm Stereo Stability: Supports compatible 2-ohm speaker loads in stereo mode.

Powerful 4-Channel Car Audio Performance

The Blaupunkt THA 485 is designed for drivers who want to improve their car's audio system with a dedicated power amplifier. Its four-channel configuration can drive compatible front and rear speakers, helping provide stronger output and greater control when the amplifier is properly matched to the rest of the system.

For compatible installations, the amplifier can also be configured in bridged mode to deliver 2 x 240W RMS at 4 ohms. This provides flexibility for suitable high-power speakers or subwoofer configurations. Always follow the manufacturer's channel-bridging and impedance requirements.

Class A/B Amplifier Design

The Blaupunkt THA 485 uses Class A/B amplification technology and supports a frequency response of 10Hz to 30kHz. Its design is intended for car audio systems that require dedicated amplification for compatible speakers and other audio components.

Correct installation, suitable power wiring and appropriate gain settings are important for achieving reliable performance. Ensure the amplifier has sufficient ventilation and is securely mounted in a suitable location.

High-Level Input for Factory Stereo Integration

The Blaupunkt THA 485 features high-level input with DC-offset auto turn-on capability. This can help integrate the amplifier with compatible factory-fitted car stereos that do not provide a conventional remote turn-on signal.

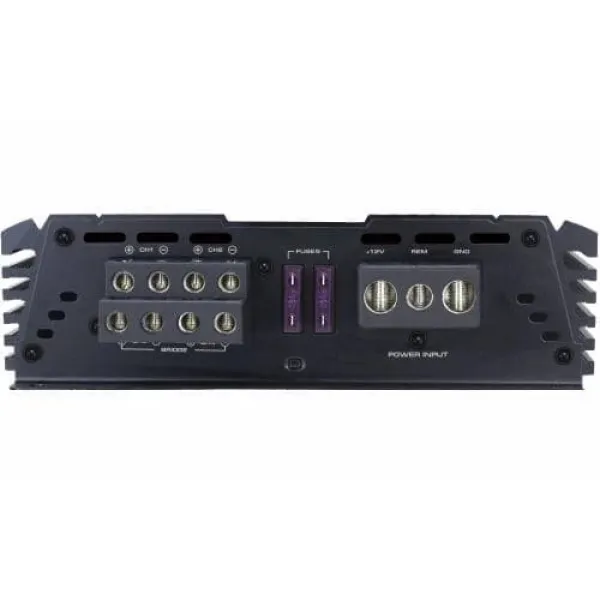

It also includes RCA pass-through terminals for routing the audio signal to additional compatible equipment. Check your head unit's output type and the amplifier's connection requirements before installation.

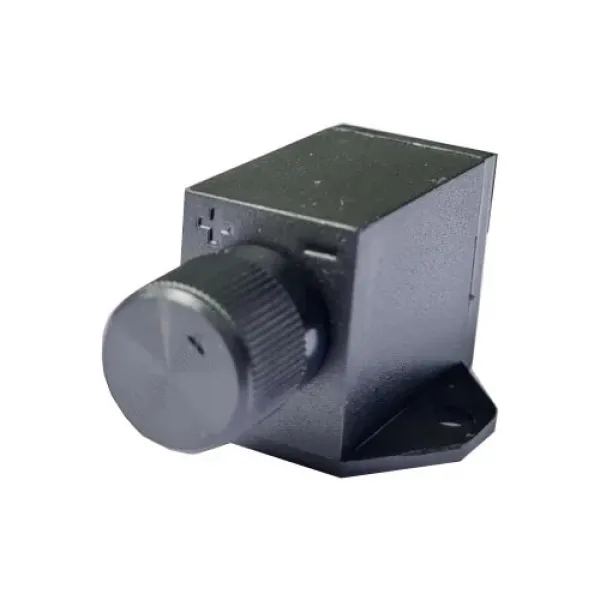

External Bass Controller Included

The included external bass controller provides convenient adjustment of bass output from a suitable mounting location inside the vehicle. This is useful when you want easier access to bass adjustment after the amplifier has been installed.

The actual bass response depends on the connected speakers or subwoofer, enclosure design, system tuning and vehicle acoustics.

Flexible Speaker and Subwoofer Configurations

The Blaupunkt THA 485 supports 4-, 3- and 2-channel operating configurations. It can be used to power four compatible speakers or configured for suitable bridged applications, depending on the connected components and wiring arrangement.

Before purchasing, compare the amplifier's RMS output at the intended impedance with the RMS power handling of your speakers or subwoofer. Correct matching helps support reliable operation and reduces the risk of damage.

Blaupunkt THA 485 Technical Specifications

• Brand: Blaupunkt
• Model: THA 485
• Product Type: 4-Channel Car Power Amplifier
• Amplifier Class: Class A/B
• Number of Channels: 4 / 3 / 2
• Maximum Total Power: 720W
• RMS Output at 4 Ohms: 4 x 85W
• RMS Output at 2 Ohms: 4 x 120W
• Bridged RMS Output at 4 Ohms: 2 x 240W
• Maximum Power at 4 Ohms: 4 x 170W
• Frequency Response: 10Hz–30kHz
• Signal-to-Noise Ratio: Greater than 90dB/A
• Input Sensitivity: 250mV–8V
• Stereo Impedance Stability: 2 Ohms
• High-Level Input: Yes
• DC-Offset Auto Turn-On: Yes
• Built-In Crossovers: Yes
• RCA Pass-Through Terminals: Yes
• External Bass Controller: Included
• Recommended Fuse: 2 x 35A
• Dimensions: 340 x 190 x 55mm

Installation and Compatibility

Before purchasing the Blaupunkt THA 485, check the RMS power handling and impedance of your speakers or subwoofer. Ensure that the intended wiring configuration follows the manufacturer's minimum impedance requirements, especially when bridging channels.

Professional installation is recommended for correct power connections, grounding, fuse protection, signal routing and gain adjustment. Use appropriately rated wiring and follow the supplied installation manual.

Buy Blaupunkt THA 485 Car Amplifier Online

Shop the Blaupunkt THA 485 4 Channel Class A/B Car Amplifier at Carhatke.com and explore car audio upgrades for compatible speakers and subwoofer systems. Check your system requirements and installation compatibility before ordering.
