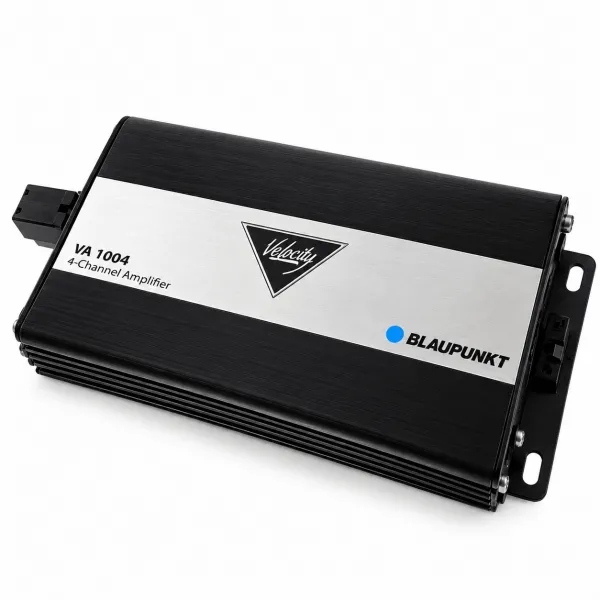

Blaupunkt VA 1004 4 Channel Class D Car Amplifier 720W

Blaupunkt VA 1004 4 Channel Class D Car Amplifier 720W

Blaupunkt VA 1004 4 Channel Class D Car Amplifier 720W

Take your in-car music experience to the next level with the Blaupunkt VA 1004 4 Channel Car Amplifier. Designed for car audio upgrades, this compact Class D amplifier delivers powerful, controlled output for compatible speakers while offering flexible installation and tuning options.

With 4 x 60W RMS output at 4 ohms, 4 x 90W RMS at 2 ohms and bridged output of 2 x 180W RMS at 4 ohms, the Blaupunkt VA 1004 offers versatile power configurations for compatible car audio systems. Its 720W maximum total power rating, high-level inputs and adjustable sound controls make it suitable for a range of speaker upgrade applications.

Key Features of Blaupunkt VA 1004

• 720W Maximum Total Power: Designed to deliver powerful output from a compact car amplifier.
• 4-Channel Class D Design: Suitable for powering compatible front and rear speakers.
• 4 x 60W RMS at 4 Ohms: Provides dedicated output for four compatible 4-ohm speakers.
• 4 x 90W RMS at 2 Ohms: Supports higher output with compatible 2-ohm speaker loads.
• Bridged Output: Delivers 2 x 180W RMS at 4 ohms for suitable bridged configurations.
• High-Level Input: Helps integrate the amplifier with compatible factory-fitted car stereos.
• RCA Low-Level Input: Supports connection to compatible aftermarket head units and audio processors.
• DC-Offset Auto Turn-On: Enables automatic switching with compatible factory head units.
• Selectable High-Pass Filter: Choose 60Hz, 80Hz or 120Hz to suit your speaker setup.
• Adjustable Bass Boost: Select 0dB, 6dB or 12dB at 45Hz to customise low-frequency output.
• 2-Channel Input to 4-Channel Output: Allows a compatible two-channel input signal to drive all four amplifier channels.
• Compact Installation: Its small footprint helps accommodate suitable installation spaces in a vehicle.

Powerful 4-Channel Car Audio Performance

The Blaupunkt VA 1004 is designed for drivers looking to upgrade their factory or aftermarket car audio system with dedicated amplification. Its four-channel configuration can power compatible front and rear speakers, helping provide greater control over the system when correctly matched with the speakers and audio source.

For compatible installations, the amplifier can also operate in bridged mode to deliver 2 x 180W RMS at 4 ohms. This configuration may be suitable for selected speakers or subwoofers within the manufacturer's power and impedance requirements.

Compact Class D Amplifier Design

Class D amplifier technology allows the Blaupunkt VA 1004 to combine high output capability with a compact design. Measuring approximately 86.4 x 48.3 x 210.8mm, it can fit in suitable vehicle installation locations where space is limited.

Proper ventilation, secure mounting and correctly rated wiring are important for reliable operation. Installation space and cable routing should be checked before fitting.

Compatible with Factory and Aftermarket Stereos

The Blaupunkt VA 1004 features high-level speaker inputs as well as RCA low-level inputs. This gives installers flexibility when connecting the amplifier to compatible factory-fitted head units or aftermarket car stereos.

Its DC-offset turn-on capability can help activate the amplifier when used with compatible factory audio systems that do not provide a dedicated remote turn-on output. Correct input selection and configuration are essential for proper operation.

Customise Your Car Audio Sound

The selectable high-pass filter offers 60Hz, 80Hz and 120Hz settings, helping you configure the amplifier according to your speaker system. The adjustable bass boost provides 0dB, 6dB and 12dB options at 45Hz for additional low-frequency emphasis when appropriate.

The adjustable gain control supports input sensitivity settings from 0.2V to 10V. Proper gain adjustment helps match the amplifier to the connected audio source without unnecessary distortion.

Blaupunkt VA 1004 Technical Specifications

• Brand: Blaupunkt
• Model: VA 1004
• Product Type: 4-Channel Car Amplifier
• Amplifier Class: Class D
• Number of Channels: 4 / 2 bridged
• Maximum Total Power: 720W
• RMS Power at 4 Ohms: 4 x 60W
• RMS Power at 2 Ohms: 4 x 90W
• Bridged RMS Power at 4 Ohms: 2 x 180W
• Maximum Power at 4 Ohms: 4 x 180W or 2 x 360W bridged
• Stereo Impedance Stability: 2 Ohms
• Frequency Response: 10Hz–30,000Hz (-3dB)
• Signal-to-Noise Ratio: Greater than 95dB/A
• Gain Adjustment: 0.2V–10V
• Bass Boost: 0dB / 6dB / 12dB at 45Hz
• High-Pass Filter: 60Hz / 80Hz / 120Hz at 24dB
• Inputs: High-level and RCA low-level
• DC-Offset Turn-On: Yes
• Dimensions: 86.4 x 48.3 x 210.8mm

Installation and Compatibility

Before purchasing, check the RMS power handling and impedance of your speakers to ensure compatibility with the Blaupunkt VA 1004. In bridged mode, use speakers or subwoofers with an impedance of at least 4 ohms per bridged pair, as specified by the manufacturer.

Professional installation is recommended for correct power wiring, grounding, fuse protection, signal connections and gain adjustment. Always follow the manufacturer's installation instructions.

Buy Blaupunkt VA 1004 Car Amplifier Online

Shop the Blaupunkt VA 1004 4 Channel Class D Car Amplifier at Carhatke.com and upgrade your compatible car audio system with flexible power output, adjustable sound controls and compact installation. Check your speaker specifications and system compatibility before ordering.
